Alpha Smart Grow Cabinet
Brief Description :
Â
PLC base controller, smart grow chamber, 210-watt grow light, all in one grow light, Growing area – 60 cm x 60 cm x 90 cm (L x W x H) Temperature, Humidity and Co2 Control & indication, with AHU (air handling unit) and dimming and spectrum control of
light.
Internal size (W x D x H) cm: 60 x 60 x 90 - Outer Size (W x D x H) in cm: 78 x 85 x 180
Internal size (W x D x H) cm: 60 x 60 x 90 Grow chamber is suitable for all types of local plant growth. More energy efficient own it, you are ready to do research.
Model :
Â
Alpha
Minimum Order :
Â
 01
Key Features :
Â
â–ª All in One grow light
â–ª0-100% dimming of light
â–ª0-1000 PPFD at 45 cm from light
▪20°C to 50°C Temperature control
â–ª40 to 85% RH.
â–ª324 litter capacity of GC
â–ª350 to 1200 PPM Co2
â–ªAHU with 20% fresh air per hour
Key Benefits & Advantages :
Â
▪ Lighting Mastery: Set ‘n’ of spectrum combination using ALL IN ONE grow light.
▪ Dynamic Lighting Control: Enjoy 0-100% dimming and 0-1000+ PPFD adjustments at 50cm, tailoring light to your plants’ exact needs.
▪ Optimal Environment: From 20°C to 50°C, fine-tune temperature and 40-85% RH for ideal growth conditions year-round.
â–ª CO2 Supercharge: Improve photosynthesis by changing the CO2 levels (350 to 1200
PPM) for faster, healthier plants.
â–ª Fresher Air, Faster Growth: An integrated AHU introduces 20% fresh air per hour, help to improve ventilation for promoting robust and rapid plant development.

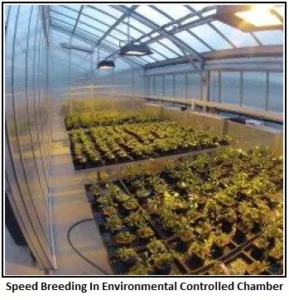

▪ Speed Breeding Success: Achieve exceptional results with simplified, effective
control over light, climate, and CO2 – your formula for speed breeding triumph.
Applications :
▪ Horticultural research .
▪ Speed Breeding.
▪ Pharma Companies.
Spectrum :
Â
Set ‘n’ number of spectrum option using ALL IN ONE grow light
| Main System Technical Specification | |
| Cabinet Weight (Kg) | 80 Kg |
| Outer Dimension | |
| Height (in./mm) | 70 / 180 |
| Width (in./mm) | 30 / 78 |
| Depth (in./mm) | 33 / 85 |
| Inner Dimension | |
| Height (in./mm) | 35 / 90 |
| Width (in./mm) | 24 / 60 |
| Depth (in./mm) | 24 / 60 |
| Power Requirement (50Hz) | 230 VAC, 3 A single phase |
| Cooling Requirement | 20°C to 60°C |
| Controller Technical Specification | |
| Control characteristic | Digital controlling |
| Control method | PLC control |
| Rated input voltage | 180VAC- 240VAC |
| Response time | ＜5sec |
| Working temperature | -0°C -- +45°C |
| Working humidity | <60% |
| Degree of protection | IP50 |
