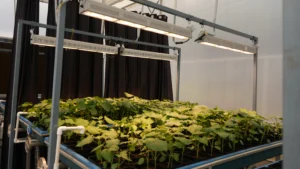

Speed Breading Growth Chamber

Technical Specification Of Plant Growth Chamber For Speed Breeding :

1. Key Technical Specifications :

▪Interior dimension: 21’Lx15’Wx10’H (feet) (Available in different customized sizes)
▪Insulation 40 mm or 50 mm
▪Insulation Density: 40-42 kg/cubic meter
▪Temperature range: 15° – 45° degrees
▪Relative humidity range between 35% to 75 %
▪Temperature uniformity: ≤1° degree
▪Humidity uniformity: ± 2%RH
▪Fresh Air: 10% per hour
▪Co2 supply provision with cut off sensor
▪Real time basis control
▪Plants capacity: 700-1000 No’s Okra plant

2. Air-conditioning System :

▪Regulation and control: Dual discharge evaporator coils, re-circulated air in the room by distributed uniform horizontal through back wall Plenum
▪The conditioning system contains all necessary fans, heaters, and valves
▪Heating: Stainless steel sheathed heater (surface evaporating system)
▪Humidifier: Humidification system with the necessary fittings
▪Make: Diakin

3. Lighting System :

▪3-IN-1 Grow Light
▪Suitable for all growth stages of plants
▪Make: Nexsel, Model: 3-IN-1
▪Lighting On-Off control with timer

4. Cooling System :

▪Single Compressor system for maintaining the temperature in chamber
▪PLC/PID based Compressor/Heater control is provided for precise climatic control
▪Condensing unit is charged with CFC free refrigerant
▪Refrigeration function monitored by controller including visual and audible alarm.

5. Control System :

▪Temperature sensor: Reading displayed will be average of two NTC sensors (which is more uniform and reliable)
▪Humidity sensor: Electronic capacitive humidity sensor.
▪Programmable PLC and Touch Screen controller
▪Resolution: Temperature: 0.1°, Humidity: 0.1%RH
▪Set-range: Temperature: 15°～40°; Humidity: Ambient～85%RH
▪Audible alarms are included based on user defined limits

6. Growing System :

▪Grow bed size: 16 ft x 3x 4ft (Length x Width x Height)
▪of grow bed: 3 No’s
▪of layers: 2
▪Growing media: Cocopeat + Soil
▪Material: Aluminium

7. Security Protection System :

▪Over-temperature protection
▪Overload protection of motor
▪Overload protection of Compressor
▪Fuse & MCB protection for each control and lighting circuit
▪Flange Mount Disconnect for Power

8. Equipment working condition :

▪Ambient temperature: 2° TO 45°, Relative humidity: ≤75%RH
▪Power supply requirement: Power voltage: AC 440±10%V 50Hz, 3-phase + ground wire protection;
▪Power switch: Air switch Current 20A.
▪Water requirement for Humidity: Water flux:5l/h, Water pressure: 0.5-2bar

9. After-sale service :

Charge-free warranty will last for 1 year from the date of equipment delivery. After the warranty period, the user will be charged properly as Annual service /One time service.

10. Technical Training :

▪Provide Charge-free training to two operators for each user (in user site after installation and commissioning of the equipment).

11. Accessories :

▪Warranty Certificate: one copy
▪Operation & Maintenance Manual: one copy
▪Circuit diagram: one copy

12. Included things :

▪Machine
▪Machine Installation charges
▪One year service
▪Internal growing structure
▪Civil work
▪Freight charges

13. What not included :

▪Unloading of machine
▪Voltage stabilizer
▪Electric and water supply on site
▪Water requirement 6-8 litter per hours (Vapour particle size: 5-7 micron)
