Speed Breeding
Powered by the 7P control mechanism, reducing breeding time by up to 60%
Speed breeding is a cutting-edge technique that accelerates plant growth by optimizing environmental conditions, reducing breeding cycles for crops like wheat, rice, cotton and okra.
With over 6 years of expertise, Nexsel has pioneered speed breeding solutions, collaborating with leading plant breeders and seed companies. Our state-of-the-art in-house facility drives research breakthroughs, helping to advance crop breeding and secure a sustainable food future.
| Product Name | Wattage | Product Prices |
|---|---|---|
| All in 1 Grow Light | 400 | Approx Price : Rs. 94900 |
Following are the 6 Game Changing Advantages of 2X Speed Breeding
Reduced Breeding Cycles: It allows multiple generations of crops to be grown within a year, significantly speeding up the breeding process ,
Faster Crop Improvement – With more generations produced in a shorter time, desirable traits, such as disease resistance or improved yield, can be introduced and established much quicker
Increased Genetic Gain- By accelerating the breeding process, speed breeding enhances the rate at which genetic gains are achieved. Means better products quicker
Year-Round Breeding – Controlled environment conditions enable breeding to occur year-round, which is particularly useful in regions with unfavourable climates. Or allows you to start a project irrespective of season
Resource Efficiency- Speed breeding can optimize the use of resources like water, nutrients, and space, often as you require significantly less of these
Facilitates Research – It enables faster generation of data and testing of hypotheses in plant research, making it a valuable tool for geneticists and breeders
Over the past 6 years, we have conducted speed breeding trials on more than 12 different crops, yielding remarkable outcomes:
Wheat: Achieving 5 to 6 cycles per year
Cotton: Achieving 3 cycles per year
Mustard: Facilitating 3 cycles per year.
Okra: Achieving 5 cycles per year
Rice: 3 cycles per year
From our research we come to conclusion that we can reduce up to 60% cycle time by modifying environment parameters
In our quest for effective speed breeding solutions, we recognize the critical importance of the following 7 environmental parameters:
1. Temperature
2. Humidity
3. CO2 levels
4. Light spectrum
5. Light intensity
6. Lighting photoperiod
7. Airflow
By meticulously managing these parameters, we optimize plant growth and development, thereby accelerating the breeding process and achieving exceptional results
7 P Control: Speed Breeding Growth Chamber
Nexsel offers two types of 7 P Control Speed Breeding Growth Chambers:
- Portable Chamber
- Walk-In Chamber

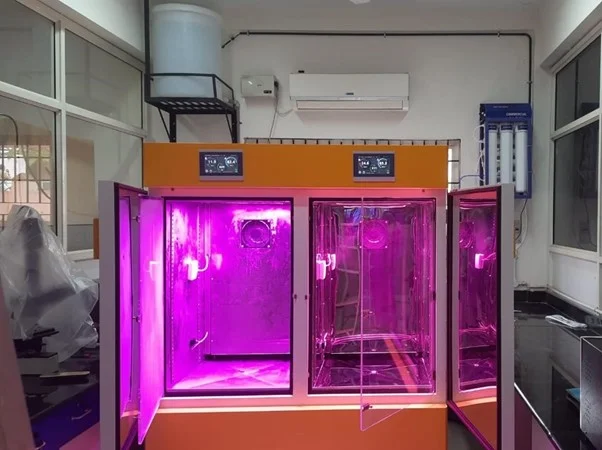

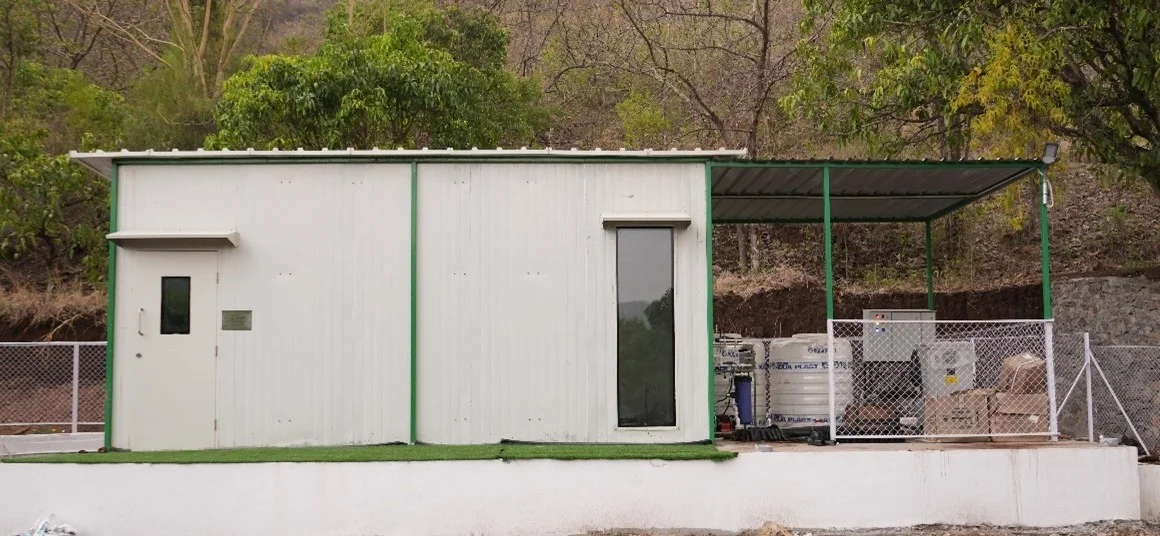

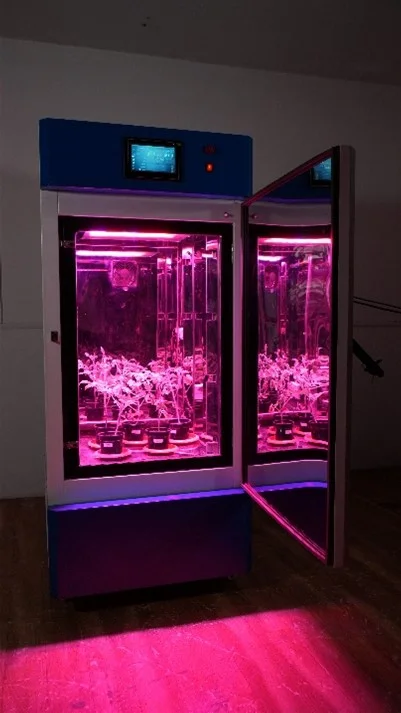

7 P Control: Portable Speed Breeding Growth Chamber
This chamber is specifically designed for developing growing protocols. Many research organizations utilize it to establish protocols for speed breeding. It offers precise control over all critical environmental parameters and is available in customized sizes to meet specific needs.
▪ Set ‘n’ number of spectrums
▪ 0-100% dimming of light
▪ 0-1000 PPFD at 45 cm from light
▪ 18°C to 50°C Temperature control
▪ 45 to 90% RH control
▪ 350 to 1200 PPM Co2 control
▪ AHU with up to 20% fresh air per hour
▪ You can set any type of wavelength combination (395 nm to 735 nm) for proper plant growth
▪ 0-100% dimming and 0-1000+ PPFD adjustments, helps setting light to your plants' exact needs
▪ From 20°C to 50°C, fine-tune temperature and 40-85% RH for ideal growth conditions year-round
▪ Improve photosynthesis by changing the CO2 levels (350 to 1200 PPM) for faster, healthier plants
▪ An integrated AHU introduces 20% fresh air per hour, help to improve ventilation for promoting robust and rapid plant development
▪ Okra
▪ Tomato
▪ Spices

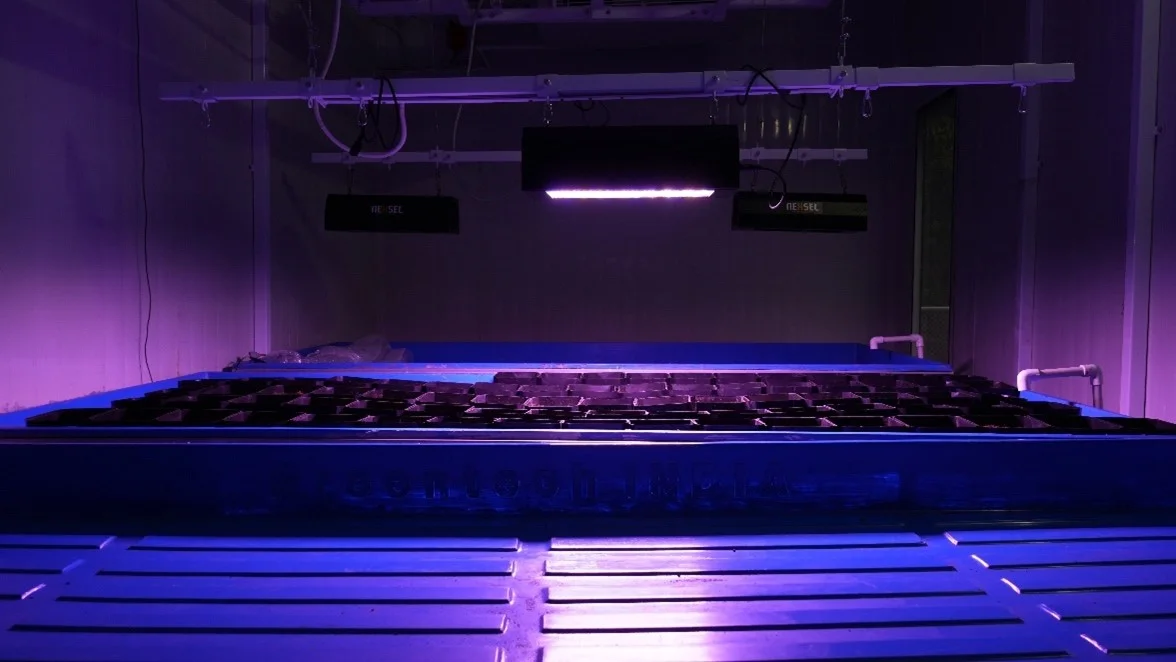

7 P Control: Walkin Speed Breeding Growth Chamber
For commercial speed breeding, the best option is a Walk-In growth chamber. Nexsel offers a comprehensive solution, providing a complete chamber with full control over all environmental parameters, including light spectrum and intensity, photoperiod, temperature, humidity, fresh air, and CO2 levels
▪ One facility can be used for different crops
▪ Gain precise control over all environmental conditions
▪ Access real-time data through our software
▪ Nexsel provides basic growing protocols to save initial research time
Customizable Growth Chambers
- Available in Custom Sizes: We can design and construct growth chambers based on the number of plants and available space.
- Chamber Construction: Made from foam sheets with 50 mm insulation.
- Insulation Density: 40-42 kg/cubic meter.
- Structural Features: Chambers come with a civil base and can include additional rooms, such as testing labs or cabins, as per your requirements.

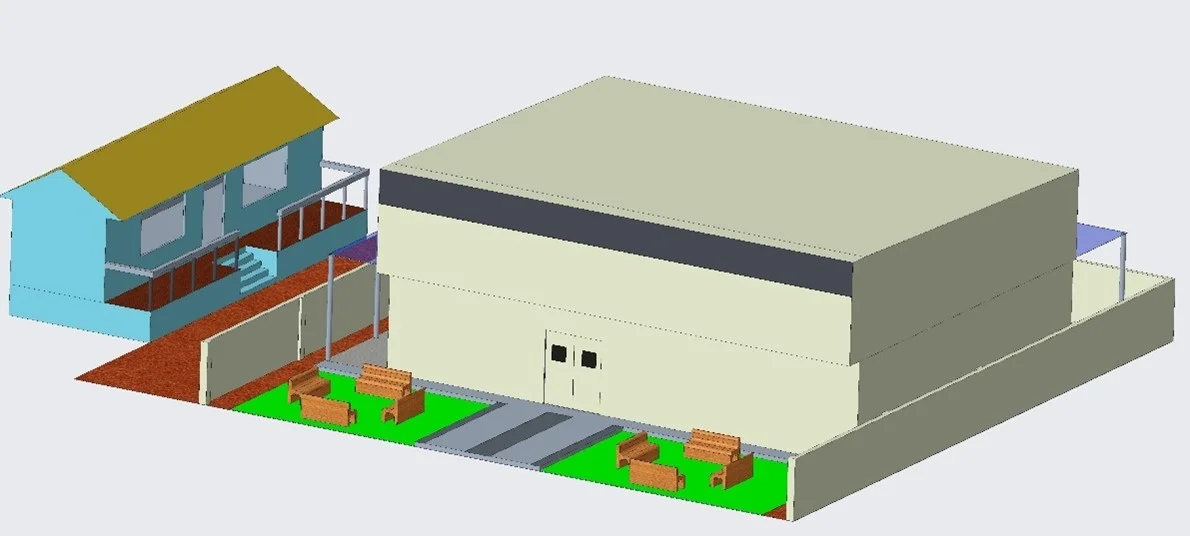

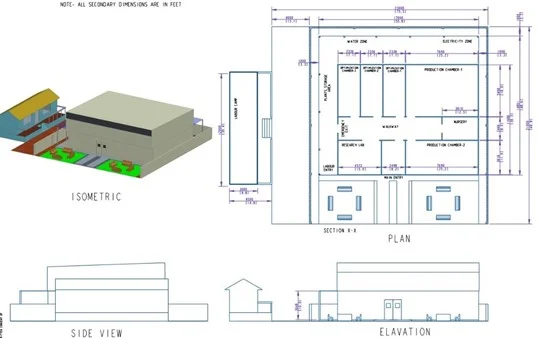

- Design Stage Support: We provide complete drawings with elevation and 3D views for a better understanding of the setup.
Lighting system
We can provide different lighting option,
1. All In One grow light
- Ability to set a wide range of spectrum options
- 0-100% dimming of lights
- 0-1000 PPFD at 45 cm from the light source
- Full photoperiod control
- All controls accessible via mobile and web apps
2. 3 in 1 grow light
- Comes with 3 spectrum options Veg, Bloom and Fruiting
- 0-100% dimming of light
- Spectrum and dimming controlled both manually and using App base control
3. Borad spectrum option
- Single spectrum like Sunlight which help plant growth for all stages
- 0-100% dimming of light
- App base control for dimming
Temperature control
- Temperature Regulation: Includes options for Chiller/AC and heaters.
- Temperature Range: Adjustable from 5°C to 45°C.
Humidity control

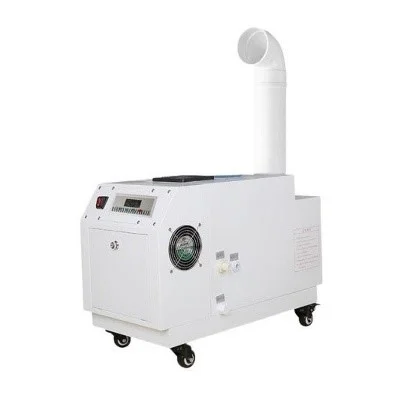

- Humidity Control: Includes Ultra Sonic Humidifier and Dehumidifier.
- Control Range: 35% to 95% RH.
Co2 control
- CO2 Control: 350 ppm to 1200 ppm
Automation and Monitoring
- Touch Display: Equipped with a 7" Capacitive Touch Display and FarmOS Cloud Platform.
- Channels: Available in 8 Channels - 220 VAC (10 Amps) with future expansion slots.
- Triggers: Includes time and sensor-based triggers.
- Expansion: Supports multiple zones and up to 32 sensors.
- Sensors: Comes with an environmental sensor set, Industrial Grade IP66, measuring Air Temperature, CO2, Humidity, VPD, and Dew Point.

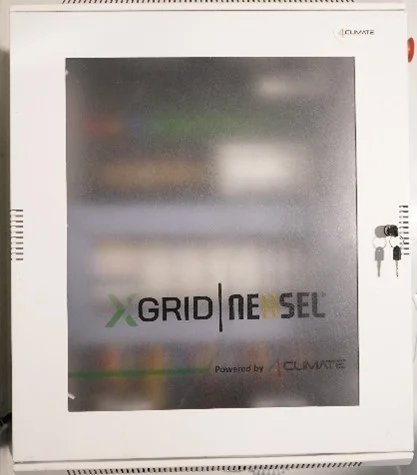

- Automation Panel: Industrial Grade Automation Panel, Make – Nexsel, Model – XGrid.
Growing Bed with light installation provision
- EBB & Flow benches available according to room sizes.
- Options available in both MS powder coating and plastic
▪ 200 sq.ft facility at Pune – Nexsel Research Centre
▪ 400 sq.ft facility at Kolkata for speed breeding
▪ Comprehensive customer support from the design phase to installation
▪ Provision of basic growing protocols
▪ Technical training for breeders
▪ One-year service support
▪ Annual Maintenance Contract (AMC) available after the first year

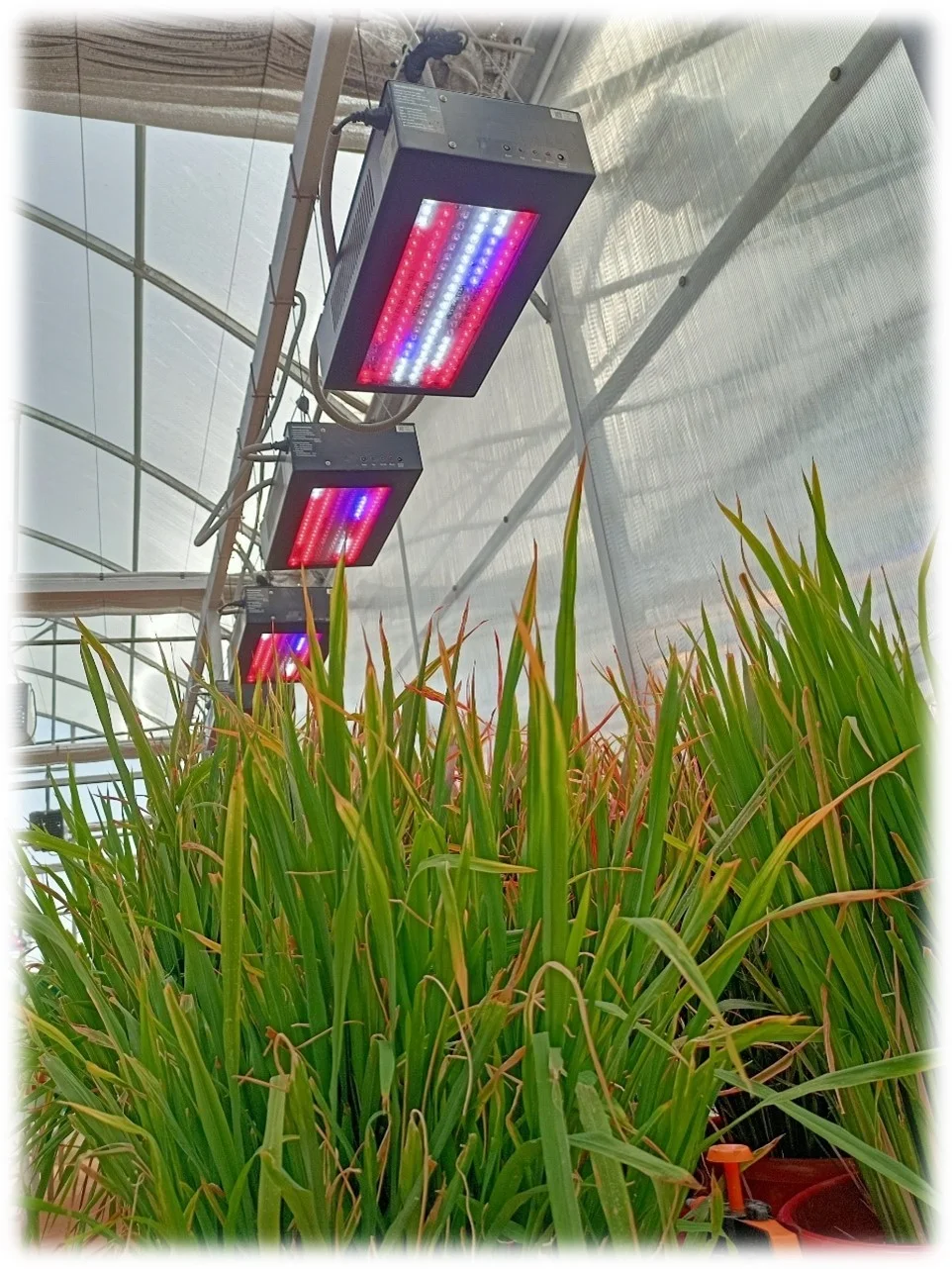

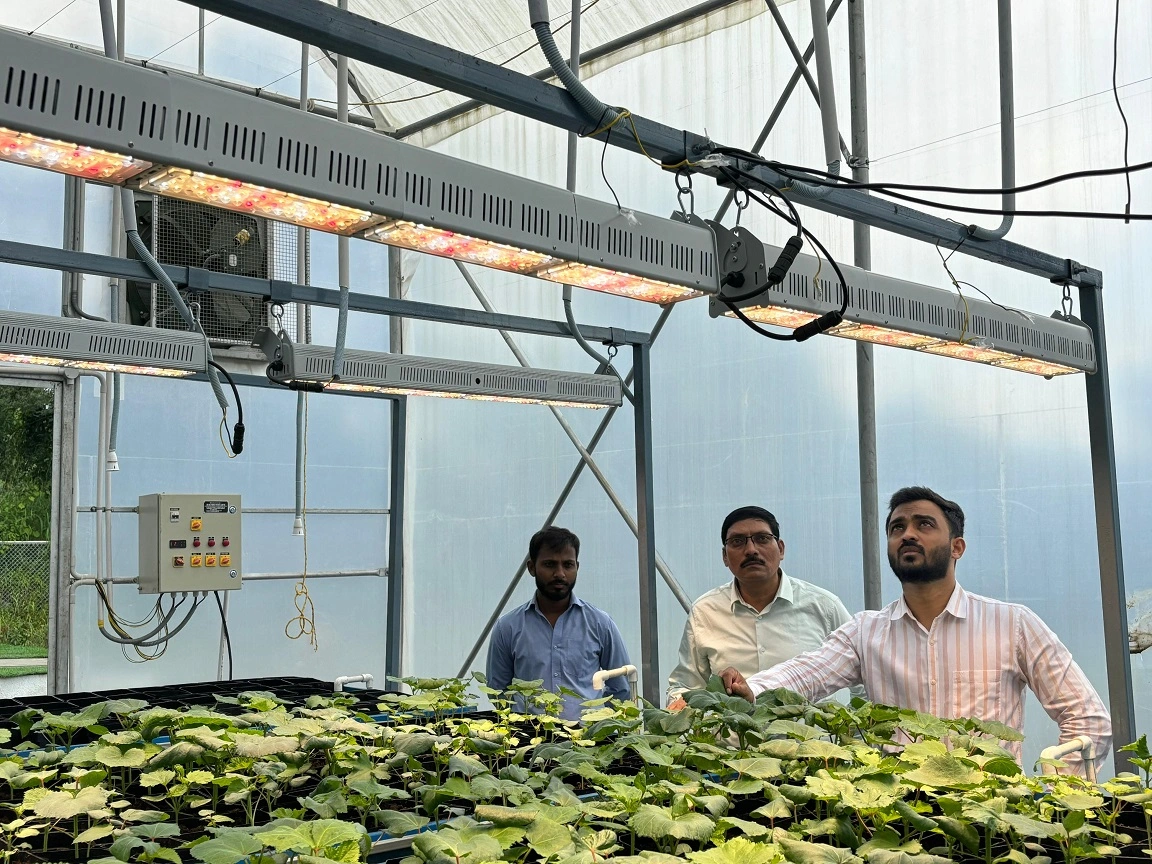

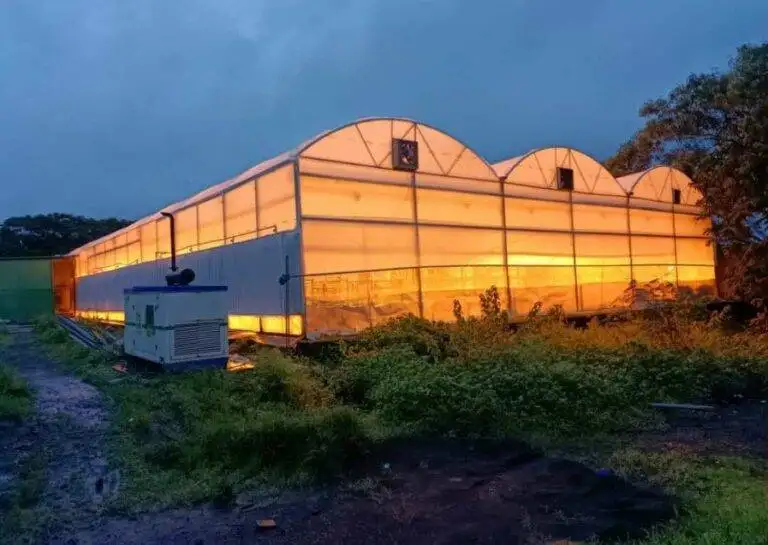

Speed Breeding in Polyhouse
Speed breeding in a polyhouse is a cost-effective solution for commercial breeding. It provides an efficient and scalable environment that enhances plant growth and accelerates breeding cycles. The controlled conditions of a polyhouse, combined with speed breeding techniques, optimize resource use and reduce operational costs while improving productivity.
Lighting Design:
- Assess current light intensity at the location
- Determine required intensity based on crop needs
- Perform ISPT Mapping for precise recommendations
Lighting Protocol:
- Define light spectrum
- Set light intensity
- Establish photoperiod requirements
Lighting Automation:
- Control photoperiod
- Manage spectrum adjustments
- Regulate PPFD to meet specific needs
ISPT Mapping is a proprietary technique developed by Nexsel to determine the optimal lighting conditions for speed breeding applications. Through this advanced process, we can precisely identify the necessary intensity lighting protocol tailored to your specific requirements. Based on the ISPT Mapping results, we provide comprehensive recommendations, including the number of lights, spectrum, photoperiod, and detailed spectral information appropriate for various plant growth stages.
- Cost effective than walk in growth chamber
- We can use for larger areas
- Best for commercial breeding
Highlights from Our Installations

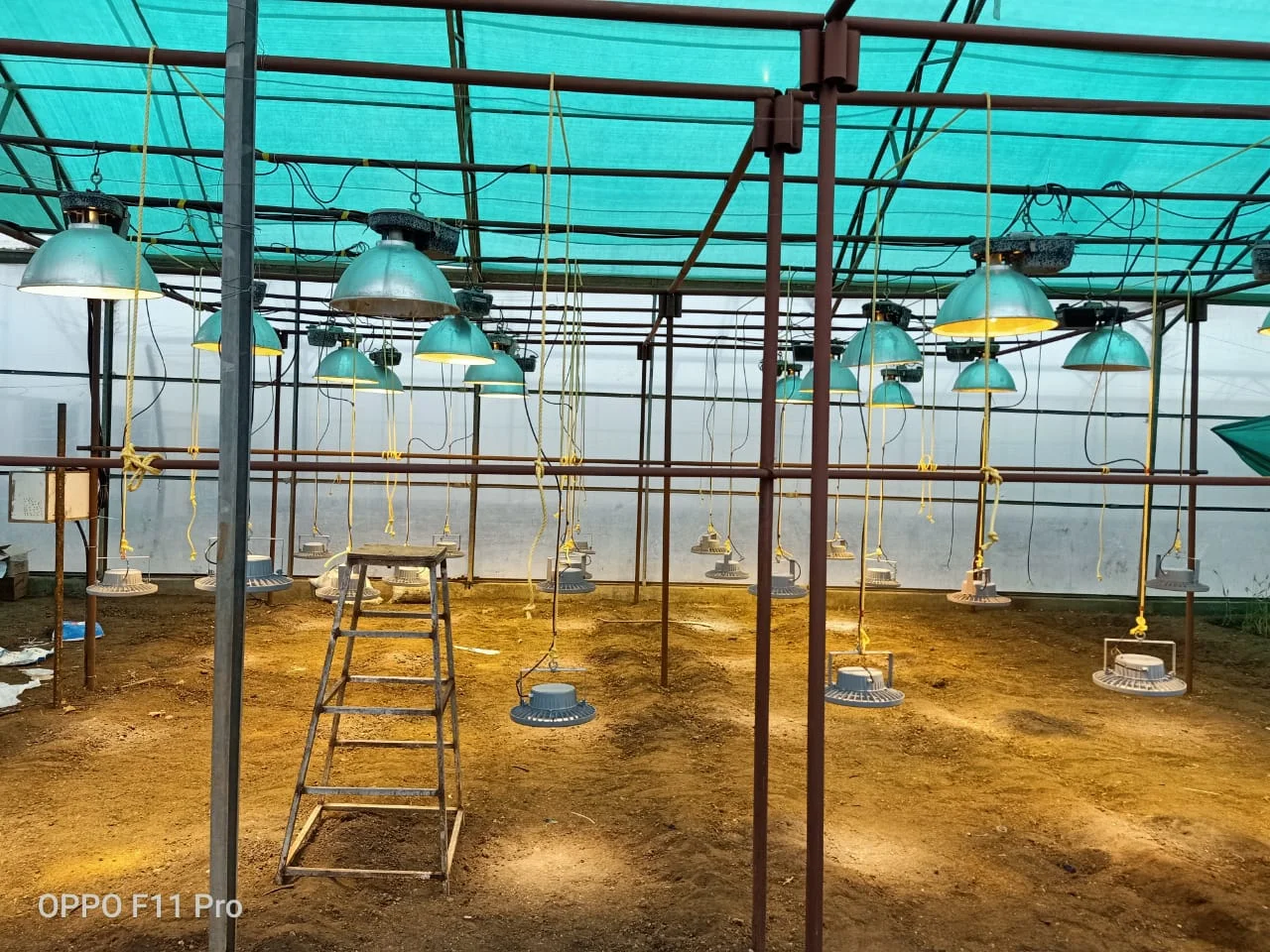

Wheat Speed Breeding
Location : Jalna, Aurangabad
Year: 2018
Results : seed to seed time 60 days
Rice Speed Breeding
Location : Hyderabad
Year : 2022

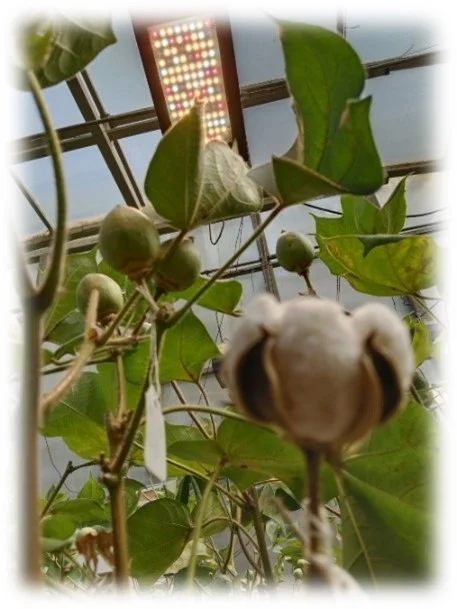

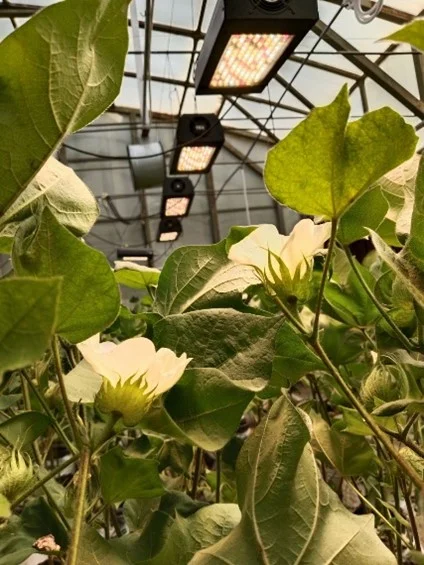

Cotton Speed Breeding
Location: Nagpur
Year : 2023
Results: Seed to seed time 130 days
Different Lighting Options for 2X Speed Breeding

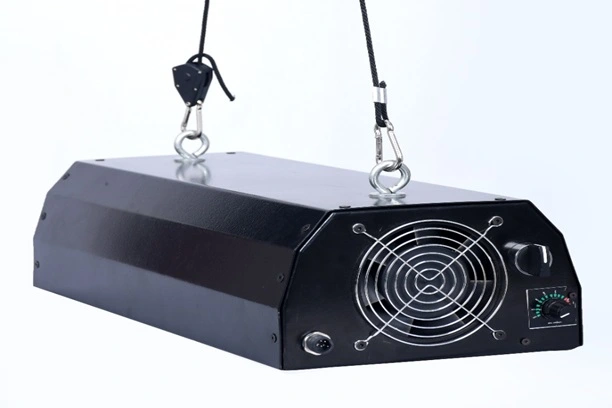

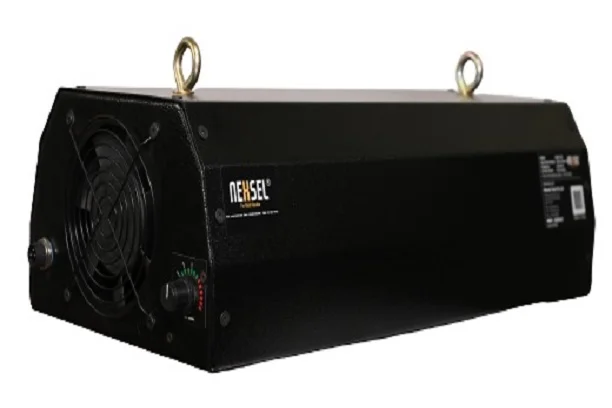

TL 200
Model: TL 200
Wattage: 200 watts
Dimming : 0 to 100%
PPE: 2.6 to 2.8 μmol/J
Height adjustment
Warranty : 36 month
Lighting Control : Manual and IOT
Spectrum Details:
| UV | B | G | R | FR | PAR | CCT | CRI | B:G | R:FR | R:B |
| 0 | 11 | 33 | 45 | 11 | 89 | 3190 | 94 | 0.34 | 4.10 | 3.94 |

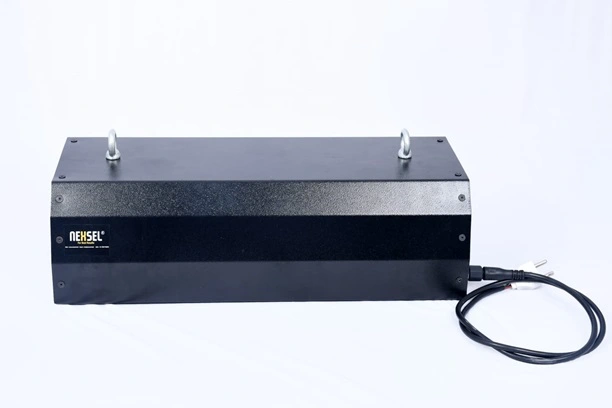

TL400
Model: TL 400
Wattage : 400 watts
Dimming : 0 to 100%
PPE : 2.6 to 2.8 μmol/J
Height adjustment : Up to 1 meter
Warranty : 36 month
Control : Manual and IOT
Spectrum Details
| UV | B | G | R | FR | PAR | CCT | CRI | B:G | R:FR | R:B |
| 0 | 11 | 33 | 45 | 11 | 89 | 3190 | 94 | 0.34 | 4.10 | 3.94 |
Model – 3 in 1 (3 spectrums in 1 light)
Model: 3 in 1 ( Veg, Bloom and Growth)
Wattage : 200
Dimming : 0 to 100%
PPE : 3.2 to 3.4 μmol/J
Height adjustment : Up to 1 meter
Warranty : 36 month
Control : Manual and IOT
| UV | B | G | R | FR | PAR | CCT | CRI | B:G | R:FR | R:B |
| 1 | 28 | 23 | 40 | 8 | 92 | 11919 | 56 | 1.20 | 5.42 | 1.44 |
| UV | B | G | R | FR | PAR | CCT | CRI | B:G | R:FR | R:B |
| 0 | 11 | 7 | 65 | 18 | 83 | 1945 | 19 | 1.56 | 3.69 | 5.89 |
| UV | B | G | R | FR | PAR | CCT | CRI | B:G | R:FR | R:B |
| 0.01 | 29 | 21 | 38 | 11 | 89 | 0 | 0 | 1.37 | 3.56 | 1.31 |
ALL IN ONE (all spectrums in one light)
Model: ALL In ONE
Wattage : 400
Dimming : 0 to 100%
PPE: 3.4 to 3.6 μmol/J
Height adjustment : up to 1 meter
Warranty : 36 month
Spectrum Details : You can set ‘n’ number of spectrum using ALL In One Light
